Specifications

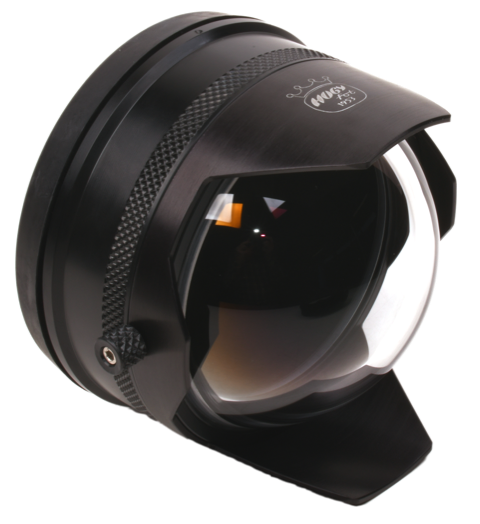

Hugyfot 4” Mini Dome Port (Mineral Glass)
Hugyfot Mini Dome Ports are the best choice for Close Focus Wide Angle and Close Focus Fisheye imaging. You can get extremely close to your subject and thanks to its small size it offers plenty of space for optimal strobe positioning and lighting your subject.

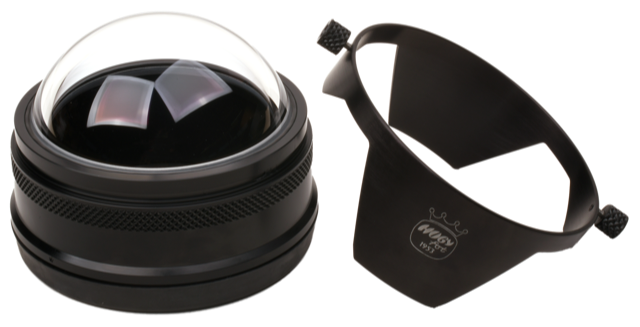

The 4” Mini Dome Port is very travel friendly thanks to its light weight and compact sized aluminium body and removable anodized aluminum sunshade. The dome is made out of BK-7 optical glass, coated on the outside coated with silicon oxide for the best light transmission and on its inside coated with an anti-reflection layer. The sunshade can easily be removed with two finger-screws for your circular fisheye shots.
They are equipped with the new Hugyfot bayonet mount system with double o-ring to ensure easy mounting and maximum security in combination with the HugyCheck pre-dive check system.
The Mini Dome port comes in 3 lens dedicated variants:
9.541 Mini Dome Port Mineral Glass - 4” for Canon and Nikon 8-15mm
9.542 Mini Dome Port Mineral Glass - 4” for Nikon 10.5mm
9.543 Mini Dome Port Mineral Glass - 4” for Tokina 10-17mm
The Mini Dome comes with a neoprene protection cap and rubber dust cap for the bayonet and is fully compatible with all one o-ring Hugyfot Extension Rings when the HugyCheck pre-dive check system is used.
The Mini Dome port comes in 3 lens dedicated variants:
9.541 Mini Dome Port Mineral Glass - 4” for Canon and Nikon 8-15mm
9.542 Mini Dome Port Mineral Glass - 4” for Nikon 10.5mm
9.543 Mini Dome Port Mineral Glass - 4” for Tokina 10-17mm
Recommened Accessory:
9.544 Neoprene Travel Bag for Mini Dome Port 4”
FEP 4" glass
Technical data:
Diameter:4" (hemisphere)
Weight:
9.541 = 820 gr.
9.542 = 620 gr.
9.543 = 730 gr.
Dome: glass
Bayonet: aluminium
Pressure rated: 100m
